Breast Cancer classification Using Machine Learning Classifier

Import libraries

# import libraries
import pandas as pd # for data manupulation or analysis
import numpy as np # for numeric calculation
import matplotlib.pyplot as plt # for data visualization
import seaborn as sns # for data visualization
import pickle #for dumping the model or we can use joblib library

# Suppressing Warnings
import warnings
warnings.filterwarnings('ignore')

Data Load

#Load breast cancer dataset
from sklearn.datasets import load_breast_cancer

# Breast cancer dataset for classification
data = load_breast_cancer()
print (data.feature_names)
print (data.target_names)

['mean radius' 'mean texture' 'mean perimeter' 'mean area'
 'mean smoothness' 'mean compactness' 'mean concavity'
 'mean concave points' 'mean symmetry' 'mean fractal dimension'
 'radius error' 'texture error' 'perimeter error' 'area error'
 'smoothness error' 'compactness error' 'concavity error'
 'concave points error' 'symmetry error' 'fractal dimension error'
 'worst radius' 'worst texture' 'worst perimeter' 'worst area'
 'worst smoothness' 'worst compactness' 'worst concavity'
 'worst concave points' 'worst symmetry' 'worst fractal dimension']
['malignant' 'benign']

cancer_dataset = load_breast_cancer()

Data Manupulation

type(cancer_dataset)

sklearn.utils._bunch.Bunch

# keys in dataset
cancer_dataset.keys()

dict_keys(['data', 'target', 'frame', 'target_names', 'DESCR', 'feature_names', 'filename', 'data_module'])

# target value name malignant or benign tumor
cancer_dataset['target_names']

array(['malignant', 'benign'], dtype='<U9')

# description of data
print(cancer_dataset['DESCR'])

.. _breast_cancer_dataset:

Breast cancer wisconsin (diagnostic) dataset
--------------------------------------------

**Data Set Characteristics:**

    :Number of Instances: 569

    :Number of Attributes: 30 numeric, predictive attributes and the class

    :Attribute Information:
        - radius (mean of distances from center to points on the perimeter)
        - texture (standard deviation of gray-scale values)
        - perimeter
        - area
        - smoothness (local variation in radius lengths)
        - compactness (perimeter^2 / area - 1.0)
        - concavity (severity of concave portions of the contour)
        - concave points (number of concave portions of the contour)
        - symmetry
        - fractal dimension ("coastline approximation" - 1)

        The mean, standard error, and "worst" or largest (mean of the three
        worst/largest values) of these features were computed for each image,
        resulting in 30 features.  For instance, field 0 is Mean Radius, field
        10 is Radius SE, field 20 is Worst Radius.

        - class:
                - WDBC-Malignant
                - WDBC-Benign

    :Summary Statistics:

    ===================================== ====== ======
                                           Min    Max
    ===================================== ====== ======
    radius (mean):                        6.981  28.11
    texture (mean):                       9.71   39.28
    perimeter (mean):                     43.79  188.5
    area (mean):                          143.5  2501.0
    smoothness (mean):                    0.053  0.163
    compactness (mean):                   0.019  0.345
    concavity (mean):                     0.0    0.427
    concave points (mean):                0.0    0.201
    symmetry (mean):                      0.106  0.304
    fractal dimension (mean):             0.05   0.097
    radius (standard error):              0.112  2.873
    texture (standard error):             0.36   4.885
    perimeter (standard error):           0.757  21.98
    area (standard error):                6.802  542.2
    smoothness (standard error):          0.002  0.031
    compactness (standard error):         0.002  0.135
    concavity (standard error):           0.0    0.396
    concave points (standard error):      0.0    0.053
    symmetry (standard error):            0.008  0.079
    fractal dimension (standard error):   0.001  0.03
    radius (worst):                       7.93   36.04
    texture (worst):                      12.02  49.54
    perimeter (worst):                    50.41  251.2
    area (worst):                         185.2  4254.0
    smoothness (worst):                   0.071  0.223
    compactness (worst):                  0.027  1.058
    concavity (worst):                    0.0    1.252
    concave points (worst):               0.0    0.291
    symmetry (worst):                     0.156  0.664
    fractal dimension (worst):            0.055  0.208
    ===================================== ====== ======

    :Missing Attribute Values: None

    :Class Distribution: 212 - Malignant, 357 - Benign

    :Creator:  Dr. William H. Wolberg, W. Nick Street, Olvi L. Mangasarian

    :Donor: Nick Street

    :Date: November, 1995

This is a copy of UCI ML Breast Cancer Wisconsin (Diagnostic) datasets.
https://goo.gl/U2Uwz2

Features are computed from a digitized image of a fine needle
aspirate (FNA) of a breast mass.  They describe
characteristics of the cell nuclei present in the image.

Separating plane described above was obtained using
Multisurface Method-Tree (MSM-T) [K. P. Bennett, "Decision Tree
Construction Via Linear Programming." Proceedings of the 4th
Midwest Artificial Intelligence and Cognitive Science Society,
pp. 97-101, 1992], a classification method which uses linear
programming to construct a decision tree.  Relevant features
were selected using an exhaustive search in the space of 1-4
features and 1-3 separating planes.

The actual linear program used to obtain the separating plane
in the 3-dimensional space is that described in:
[K. P. Bennett and O. L. Mangasarian: "Robust Linear
Programming Discrimination of Two Linearly Inseparable Sets",
Optimization Methods and Software 1, 1992, 23-34].

This database is also available through the UW CS ftp server:

ftp ftp.cs.wisc.edu
cd math-prog/cpo-dataset/machine-learn/WDBC/

|details-start|
**References**
|details-split|

- W.N. Street, W.H. Wolberg and O.L. Mangasarian. Nuclear feature extraction
  for breast tumor diagnosis. IS&T/SPIE 1993 International Symposium on
  Electronic Imaging: Science and Technology, volume 1905, pages 861-870,
  San Jose, CA, 1993.
- O.L. Mangasarian, W.N. Street and W.H. Wolberg. Breast cancer diagnosis and
  prognosis via linear programming. Operations Research, 43(4), pages 570-577,
  July-August 1995.
- W.H. Wolberg, W.N. Street, and O.L. Mangasarian. Machine learning techniques
  to diagnose breast cancer from fine-needle aspirates. Cancer Letters 77 (1994)
  163-171.

|details-end|

# name of features
print(cancer_dataset['feature_names'])

['mean radius' 'mean texture' 'mean perimeter' 'mean area'
 'mean smoothness' 'mean compactness' 'mean concavity'
 'mean concave points' 'mean symmetry' 'mean fractal dimension'
 'radius error' 'texture error' 'perimeter error' 'area error'
 'smoothness error' 'compactness error' 'concavity error'
 'concave points error' 'symmetry error' 'fractal dimension error'
 'worst radius' 'worst texture' 'worst perimeter' 'worst area'
 'worst smoothness' 'worst compactness' 'worst concavity'
 'worst concave points' 'worst symmetry' 'worst fractal dimension']

# location/path of data file
print(cancer_dataset['filename'])

breast_cancer.csv

Create DataFrame

# create datafrmae
cancer_df = pd.DataFrame(np.c_[cancer_dataset['data'],cancer_dataset['target']],
             columns = np.append(cancer_dataset['feature_names'], ['target']))

# DataFrame to CSV file
cancer_df.to_csv('breast_cancer_dataframe.csv')

# Head of cancer DataFrame
cancer_df.head(6)

	mean radius	mean texture	mean perimeter	mean area	mean smoothness	mean compactness	mean concavity	mean concave points	mean symmetry	mean fractal dimension	...	worst texture	worst perimeter	worst area	worst smoothness	worst compactness	worst concavity	worst concave points	worst symmetry	worst fractal dimension
0	17.99	10.38	122.80	1001.0	0.11840	0.27760	0.3001	0.14710	0.2419	0.07871	...	17.33	184.60	2019.0	0.1622	0.6656	0.7119	0.2654	0.4601	0.11890
1	20.57	17.77	132.90	1326.0	0.08474	0.07864	0.0869	0.07017	0.1812	0.05667	...	23.41	158.80	1956.0	0.1238	0.1866	0.2416	0.1860	0.2750	0.08902
2	19.69	21.25	130.00	1203.0	0.10960	0.15990	0.1974	0.12790	0.2069	0.05999	...	25.53	152.50	1709.0	0.1444	0.4245	0.4504	0.2430	0.3613	0.08758
3	11.42	20.38	77.58	386.1	0.14250	0.28390	0.2414	0.10520	0.2597	0.09744	...	26.50	98.87	567.7	0.2098	0.8663	0.6869	0.2575	0.6638	0.17300
4	20.29	14.34	135.10	1297.0	0.10030	0.13280	0.1980	0.10430	0.1809	0.05883	...	16.67	152.20	1575.0	0.1374	0.2050	0.4000	0.1625	0.2364	0.07678
5	12.45	15.70	82.57	477.1	0.12780	0.17000	0.1578	0.08089	0.2087	0.07613	...	23.75	103.40	741.6	0.1791	0.5249	0.5355	0.1741	0.3985	0.12440

6 rows × 31 columns

# Tail of cancer DataFrame
cancer_df.tail(6)

	mean radius	mean texture	mean perimeter	mean area	mean smoothness	mean compactness	mean concavity	mean concave points	mean symmetry	mean fractal dimension	...	worst texture	worst perimeter	worst area	worst smoothness	worst compactness	worst concavity	worst concave points	worst symmetry	worst fractal dimension	target
563	20.92	25.09	143.00	1347.0	0.10990	0.22360	0.31740	0.14740	0.2149	0.06879	...	29.41	179.10	1819.0	0.14070	0.41860	0.6599	0.2542	0.2929	0.09873	0.0
564	21.56	22.39	142.00	1479.0	0.11100	0.11590	0.24390	0.13890	0.1726	0.05623	...	26.40	166.10	2027.0	0.14100	0.21130	0.4107	0.2216	0.2060	0.07115	0.0
565	20.13	28.25	131.20	1261.0	0.09780	0.10340	0.14400	0.09791	0.1752	0.05533	...	38.25	155.00	1731.0	0.11660	0.19220	0.3215	0.1628	0.2572	0.06637	0.0
566	16.60	28.08	108.30	858.1	0.08455	0.10230	0.09251	0.05302	0.1590	0.05648	...	34.12	126.70	1124.0	0.11390	0.30940	0.3403	0.1418	0.2218	0.07820	0.0
567	20.60	29.33	140.10	1265.0	0.11780	0.27700	0.35140	0.15200	0.2397	0.07016	...	39.42	184.60	1821.0	0.16500	0.86810	0.9387	0.2650	0.4087	0.12400	0.0
568	7.76	24.54	47.92	181.0	0.05263	0.04362	0.00000	0.00000	0.1587	0.05884	...	30.37	59.16	268.6	0.08996	0.06444	0.0000	0.0000	0.2871	0.07039	1.0

6 rows × 31 columns

# Information of cancer Dataframe
cancer_df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 569 entries, 0 to 568
Data columns (total 31 columns):
 #   Column                   Non-Null Count  Dtype
---  ------                   --------------  -----
 0   mean radius              569 non-null    float64
 1   mean texture             569 non-null    float64
 2   mean perimeter           569 non-null    float64
 3   mean area                569 non-null    float64
 4   mean smoothness          569 non-null    float64
 5   mean compactness         569 non-null    float64
 6   mean concavity           569 non-null    float64
 7   mean concave points      569 non-null    float64
 8   mean symmetry            569 non-null    float64
 9   mean fractal dimension   569 non-null    float64
 10  radius error             569 non-null    float64
 11  texture error            569 non-null    float64
 12  perimeter error          569 non-null    float64
 13  area error               569 non-null    float64
 14  smoothness error         569 non-null    float64
 15  compactness error        569 non-null    float64
 16  concavity error          569 non-null    float64
 17  concave points error     569 non-null    float64
 18  symmetry error           569 non-null    float64
 19  fractal dimension error  569 non-null    float64
 20  worst radius             569 non-null    float64
 21  worst texture            569 non-null    float64
 22  worst perimeter          569 non-null    float64
 23  worst area               569 non-null    float64
 24  worst smoothness         569 non-null    float64
 25  worst compactness        569 non-null    float64
 26  worst concavity          569 non-null    float64
 27  worst concave points     569 non-null    float64
 28  worst symmetry           569 non-null    float64
 29  worst fractal dimension  569 non-null    float64
 30  target                   569 non-null    float64
dtypes: float64(31)
memory usage: 137.9 KB

# Numerical distribution of data
cancer_df.describe()

	mean radius	mean texture	mean perimeter	mean area	mean smoothness	mean compactness	mean concavity	mean concave points	mean symmetry	mean fractal dimension	...	worst texture	worst perimeter	worst area	worst smoothness	worst compactness	worst concavity	worst concave points	worst symmetry	worst fractal dimension	target
count	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	...	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000	569.000000
mean	14.127292	19.289649	91.969033	654.889104	0.096360	0.104341	0.088799	0.048919	0.181162	0.062798	...	25.677223	107.261213	880.583128	0.132369	0.254265	0.272188	0.114606	0.290076	0.083946	0.627417
std	3.524049	4.301036	24.298981	351.914129	0.014064	0.052813	0.079720	0.038803	0.027414	0.007060	...	6.146258	33.602542	569.356993	0.022832	0.157336	0.208624	0.065732	0.061867	0.018061	0.483918
min	6.981000	9.710000	43.790000	143.500000	0.052630	0.019380	0.000000	0.000000	0.106000	0.049960	...	12.020000	50.410000	185.200000	0.071170	0.027290	0.000000	0.000000	0.156500	0.055040	0.000000
25%	11.700000	16.170000	75.170000	420.300000	0.086370	0.064920	0.029560	0.020310	0.161900	0.057700	...	21.080000	84.110000	515.300000	0.116600	0.147200	0.114500	0.064930	0.250400	0.071460	0.000000
50%	13.370000	18.840000	86.240000	551.100000	0.095870	0.092630	0.061540	0.033500	0.179200	0.061540	...	25.410000	97.660000	686.500000	0.131300	0.211900	0.226700	0.099930	0.282200	0.080040	1.000000
75%	15.780000	21.800000	104.100000	782.700000	0.105300	0.130400	0.130700	0.074000	0.195700	0.066120	...	29.720000	125.400000	1084.000000	0.146000	0.339100	0.382900	0.161400	0.317900	0.092080	1.000000
max	28.110000	39.280000	188.500000	2501.000000	0.163400	0.345400	0.426800	0.201200	0.304000	0.097440	...	49.540000	251.200000	4254.000000	0.222600	1.058000	1.252000	0.291000	0.663800	0.207500	1.000000

8 rows × 31 columns

cancer_df.isnull().sum()

mean radius                0
mean texture               0
mean perimeter             0
mean area                  0
mean smoothness            0
mean compactness           0
mean concavity             0
mean concave points        0
mean symmetry              0
mean fractal dimension     0
radius error               0
texture error              0
perimeter error            0
area error                 0
smoothness error           0
compactness error          0
concavity error            0
concave points error       0
symmetry error             0
fractal dimension error    0
worst radius               0
worst texture              0
worst perimeter            0
worst area                 0
worst smoothness           0
worst compactness          0
worst concavity            0
worst concave points       0
worst symmetry             0
worst fractal dimension    0
target                     0
dtype: int64

Data Visualization

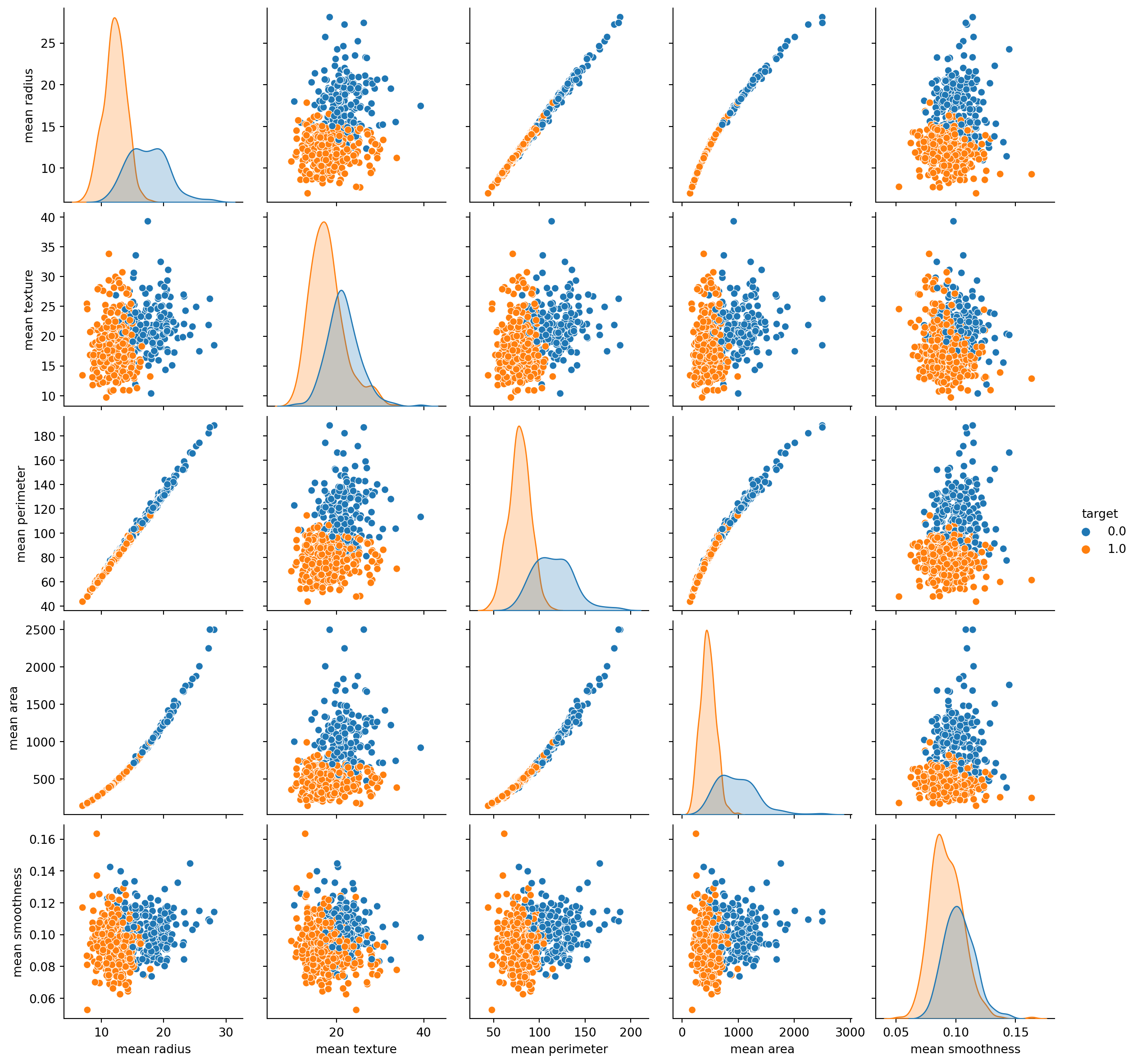

# pair plot of sample feature
sns.pairplot(cancer_df, hue = 'target',
             vars = ['mean radius', 'mean texture', 'mean perimeter', 'mean area', 'mean smoothness'] ) # ****** img 5 ***

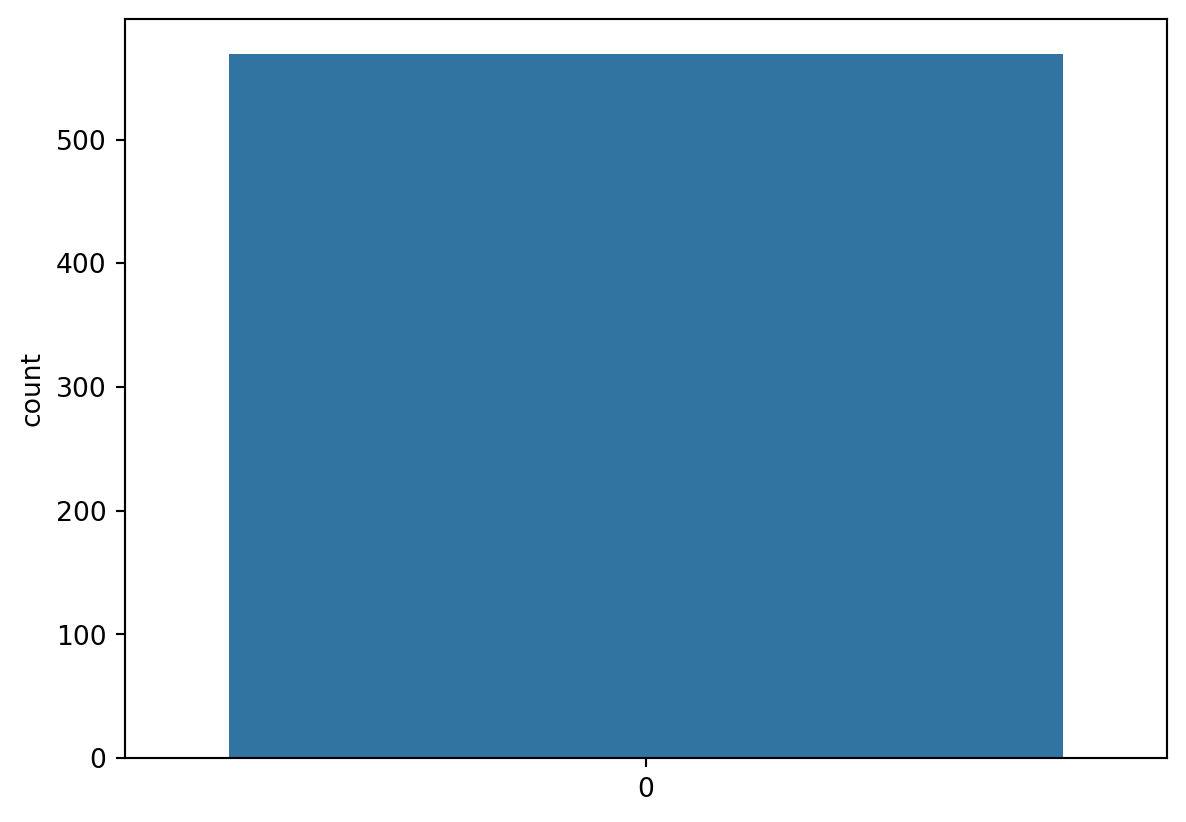

# Count the target class
sns.countplot(cancer_df['target']) #  **************************** img 5 *************************

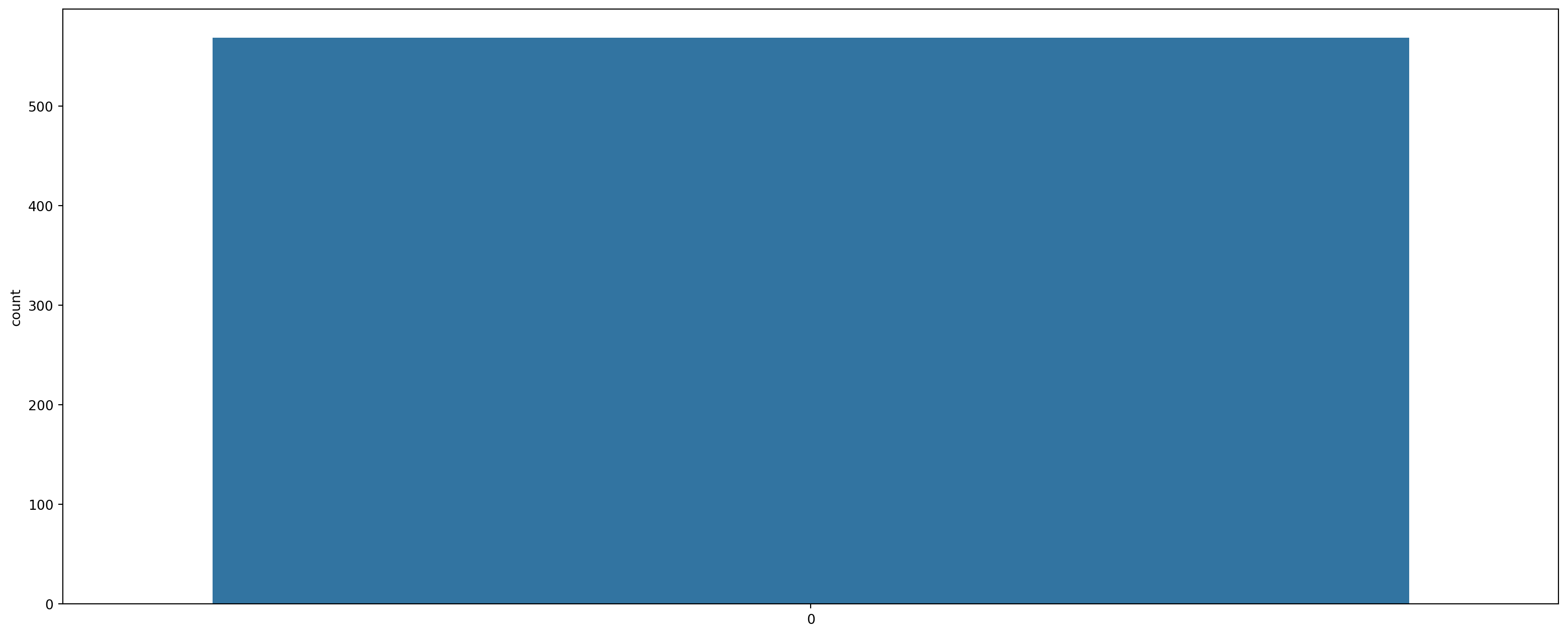

# counter plot of feature mean radius
plt.figure(figsize = (20,8))
sns.countplot(cancer_df['mean radius']) # *** img 7 ****

Heatmap of a correlation matrix

cancer_df.corr()#gives the correlation between them

	mean radius	mean texture	mean perimeter	mean area	mean smoothness	mean compactness	mean concavity	mean concave points	mean symmetry	mean fractal dimension	...	worst texture	worst perimeter	worst area	worst smoothness	worst compactness	worst concavity	worst concave points	worst symmetry	worst fractal dimension	target
mean radius	1.000000	0.323782	0.997855	0.987357	0.170581	0.506124	0.676764	0.822529	0.147741	-0.311631	...	0.297008	0.965137	0.941082	0.119616	0.413463	0.526911	0.744214	0.163953	0.007066	-0.730029
mean texture	0.323782	1.000000	0.329533	0.321086	-0.023389	0.236702	0.302418	0.293464	0.071401	-0.076437	...	0.912045	0.358040	0.343546	0.077503	0.277830	0.301025	0.295316	0.105008	0.119205	-0.415185
mean perimeter	0.997855	0.329533	1.000000	0.986507	0.207278	0.556936	0.716136	0.850977	0.183027	-0.261477	...	0.303038	0.970387	0.941550	0.150549	0.455774	0.563879	0.771241	0.189115	0.051019	-0.742636
mean area	0.987357	0.321086	0.986507	1.000000	0.177028	0.498502	0.685983	0.823269	0.151293	-0.283110	...	0.287489	0.959120	0.959213	0.123523	0.390410	0.512606	0.722017	0.143570	0.003738	-0.708984
mean smoothness	0.170581	-0.023389	0.207278	0.177028	1.000000	0.659123	0.521984	0.553695	0.557775	0.584792	...	0.036072	0.238853	0.206718	0.805324	0.472468	0.434926	0.503053	0.394309	0.499316	-0.358560
mean compactness	0.506124	0.236702	0.556936	0.498502	0.659123	1.000000	0.883121	0.831135	0.602641	0.565369	...	0.248133	0.590210	0.509604	0.565541	0.865809	0.816275	0.815573	0.510223	0.687382	-0.596534
mean concavity	0.676764	0.302418	0.716136	0.685983	0.521984	0.883121	1.000000	0.921391	0.500667	0.336783	...	0.299879	0.729565	0.675987	0.448822	0.754968	0.884103	0.861323	0.409464	0.514930	-0.696360
mean concave points	0.822529	0.293464	0.850977	0.823269	0.553695	0.831135	0.921391	1.000000	0.462497	0.166917	...	0.292752	0.855923	0.809630	0.452753	0.667454	0.752399	0.910155	0.375744	0.368661	-0.776614
mean symmetry	0.147741	0.071401	0.183027	0.151293	0.557775	0.602641	0.500667	0.462497	1.000000	0.479921	...	0.090651	0.219169	0.177193	0.426675	0.473200	0.433721	0.430297	0.699826	0.438413	-0.330499
mean fractal dimension	-0.311631	-0.076437	-0.261477	-0.283110	0.584792	0.565369	0.336783	0.166917	0.479921	1.000000	...	-0.051269	-0.205151	-0.231854	0.504942	0.458798	0.346234	0.175325	0.334019	0.767297	0.012838
radius error	0.679090	0.275869	0.691765	0.732562	0.301467	0.497473	0.631925	0.698050	0.303379	0.000111	...	0.194799	0.719684	0.751548	0.141919	0.287103	0.380585	0.531062	0.094543	0.049559	-0.567134
texture error	-0.097317	0.386358	-0.086761	-0.066280	0.068406	0.046205	0.076218	0.021480	0.128053	0.164174	...	0.409003	-0.102242	-0.083195	-0.073658	-0.092439	-0.068956	-0.119638	-0.128215	-0.045655	0.008303
perimeter error	0.674172	0.281673	0.693135	0.726628	0.296092	0.548905	0.660391	0.710650	0.313893	0.039830	...	0.200371	0.721031	0.730713	0.130054	0.341919	0.418899	0.554897	0.109930	0.085433	-0.556141
area error	0.735864	0.259845	0.744983	0.800086	0.246552	0.455653	0.617427	0.690299	0.223970	-0.090170	...	0.196497	0.761213	0.811408	0.125389	0.283257	0.385100	0.538166	0.074126	0.017539	-0.548236
smoothness error	-0.222600	0.006614	-0.202694	-0.166777	0.332375	0.135299	0.098564	0.027653	0.187321	0.401964	...	-0.074743	-0.217304	-0.182195	0.314457	-0.055558	-0.058298	-0.102007	-0.107342	0.101480	0.067016
compactness error	0.206000	0.191975	0.250744	0.212583	0.318943	0.738722	0.670279	0.490424	0.421659	0.559837	...	0.143003	0.260516	0.199371	0.227394	0.678780	0.639147	0.483208	0.277878	0.590973	-0.292999
concavity error	0.194204	0.143293	0.228082	0.207660	0.248396	0.570517	0.691270	0.439167	0.342627	0.446630	...	0.100241	0.226680	0.188353	0.168481	0.484858	0.662564	0.440472	0.197788	0.439329	-0.253730
concave points error	0.376169	0.163851	0.407217	0.372320	0.380676	0.642262	0.683260	0.615634	0.393298	0.341198	...	0.086741	0.394999	0.342271	0.215351	0.452888	0.549592	0.602450	0.143116	0.310655	-0.408042
symmetry error	-0.104321	0.009127	-0.081629	-0.072497	0.200774	0.229977	0.178009	0.095351	0.449137	0.345007	...	-0.077473	-0.103753	-0.110343	-0.012662	0.060255	0.037119	-0.030413	0.389402	0.078079	0.006522
fractal dimension error	-0.042641	0.054458	-0.005523	-0.019887	0.283607	0.507318	0.449301	0.257584	0.331786	0.688132	...	-0.003195	-0.001000	-0.022736	0.170568	0.390159	0.379975	0.215204	0.111094	0.591328	-0.077972
worst radius	0.969539	0.352573	0.969476	0.962746	0.213120	0.535315	0.688236	0.830318	0.185728	-0.253691	...	0.359921	0.993708	0.984015	0.216574	0.475820	0.573975	0.787424	0.243529	0.093492	-0.776454
worst texture	0.297008	0.912045	0.303038	0.287489	0.036072	0.248133	0.299879	0.292752	0.090651	-0.051269	...	1.000000	0.365098	0.345842	0.225429	0.360832	0.368366	0.359755	0.233027	0.219122	-0.456903
worst perimeter	0.965137	0.358040	0.970387	0.959120	0.238853	0.590210	0.729565	0.855923	0.219169	-0.205151	...	0.365098	1.000000	0.977578	0.236775	0.529408	0.618344	0.816322	0.269493	0.138957	-0.782914
worst area	0.941082	0.343546	0.941550	0.959213	0.206718	0.509604	0.675987	0.809630	0.177193	-0.231854	...	0.345842	0.977578	1.000000	0.209145	0.438296	0.543331	0.747419	0.209146	0.079647	-0.733825
worst smoothness	0.119616	0.077503	0.150549	0.123523	0.805324	0.565541	0.448822	0.452753	0.426675	0.504942	...	0.225429	0.236775	0.209145	1.000000	0.568187	0.518523	0.547691	0.493838	0.617624	-0.421465
worst compactness	0.413463	0.277830	0.455774	0.390410	0.472468	0.865809	0.754968	0.667454	0.473200	0.458798	...	0.360832	0.529408	0.438296	0.568187	1.000000	0.892261	0.801080	0.614441	0.810455	-0.590998
worst concavity	0.526911	0.301025	0.563879	0.512606	0.434926	0.816275	0.884103	0.752399	0.433721	0.346234	...	0.368366	0.618344	0.543331	0.518523	0.892261	1.000000	0.855434	0.532520	0.686511	-0.659610
worst concave points	0.744214	0.295316	0.771241	0.722017	0.503053	0.815573	0.861323	0.910155	0.430297	0.175325	...	0.359755	0.816322	0.747419	0.547691	0.801080	0.855434	1.000000	0.502528	0.511114	-0.793566
worst symmetry	0.163953	0.105008	0.189115	0.143570	0.394309	0.510223	0.409464	0.375744	0.699826	0.334019	...	0.233027	0.269493	0.209146	0.493838	0.614441	0.532520	0.502528	1.000000	0.537848	-0.416294
worst fractal dimension	0.007066	0.119205	0.051019	0.003738	0.499316	0.687382	0.514930	0.368661	0.438413	0.767297	...	0.219122	0.138957	0.079647	0.617624	0.810455	0.686511	0.511114	0.537848	1.000000	-0.323872
target	-0.730029	-0.415185	-0.742636	-0.708984	-0.358560	-0.596534	-0.696360	-0.776614	-0.330499	0.012838	...	-0.456903	-0.782914	-0.733825	-0.421465	-0.590998	-0.659610	-0.793566	-0.416294	-0.323872	1.000000

31 rows × 31 columns

Correlation Barplot

# create second DataFrame by droping target
cancer_df2 = cancer_df.drop(['target'], axis = 1)
print("The shape of 'cancer_df2' is : ", cancer_df2.shape)

The shape of 'cancer_df2' is :  (569, 30)

#cancer_df2.corrwith(cancer_df.target)

cancer_df2.corrwith(cancer_df.target).index

Index(['mean radius', 'mean texture', 'mean perimeter', 'mean area',
       'mean smoothness', 'mean compactness', 'mean concavity',
       'mean concave points', 'mean symmetry', 'mean fractal dimension',
       'radius error', 'texture error', 'perimeter error', 'area error',
       'smoothness error', 'compactness error', 'concavity error',
       'concave points error', 'symmetry error', 'fractal dimension error',
       'worst radius', 'worst texture', 'worst perimeter', 'worst area',
       'worst smoothness', 'worst compactness', 'worst concavity',
       'worst concave points', 'worst symmetry', 'worst fractal dimension'],
      dtype='object')

Split DatFrame in Train and Test

# input variable
X = cancer_df.drop(['target'], axis = 1)
X.head(6)

	mean radius	mean texture	mean perimeter	mean area	mean smoothness	mean compactness	mean concavity	mean concave points	mean symmetry	mean fractal dimension	...	worst radius	worst texture	worst perimeter	worst area	worst smoothness	worst compactness	worst concavity	worst concave points	worst symmetry	worst fractal dimension
0	17.99	10.38	122.80	1001.0	0.11840	0.27760	0.3001	0.14710	0.2419	0.07871	...	25.38	17.33	184.60	2019.0	0.1622	0.6656	0.7119	0.2654	0.4601	0.11890
1	20.57	17.77	132.90	1326.0	0.08474	0.07864	0.0869	0.07017	0.1812	0.05667	...	24.99	23.41	158.80	1956.0	0.1238	0.1866	0.2416	0.1860	0.2750	0.08902
2	19.69	21.25	130.00	1203.0	0.10960	0.15990	0.1974	0.12790	0.2069	0.05999	...	23.57	25.53	152.50	1709.0	0.1444	0.4245	0.4504	0.2430	0.3613	0.08758
3	11.42	20.38	77.58	386.1	0.14250	0.28390	0.2414	0.10520	0.2597	0.09744	...	14.91	26.50	98.87	567.7	0.2098	0.8663	0.6869	0.2575	0.6638	0.17300
4	20.29	14.34	135.10	1297.0	0.10030	0.13280	0.1980	0.10430	0.1809	0.05883	...	22.54	16.67	152.20	1575.0	0.1374	0.2050	0.4000	0.1625	0.2364	0.07678
5	12.45	15.70	82.57	477.1	0.12780	0.17000	0.1578	0.08089	0.2087	0.07613	...	15.47	23.75	103.40	741.6	0.1791	0.5249	0.5355	0.1741	0.3985	0.12440

6 rows × 30 columns

# output variable
y = cancer_df['target']
y.head(6)

0    0.0
1    0.0
2    0.0
3    0.0
4    0.0
5    0.0
Name: target, dtype: float64

split dataset into train and test

# split dataset into train and test
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size = 0.2, random_state= 5)

X_train

	mean radius	mean texture	mean perimeter	mean area	mean smoothness	mean compactness	mean concavity	mean concave points	mean symmetry	mean fractal dimension	...	worst radius	worst texture	worst perimeter	worst area	worst smoothness	worst compactness	worst concavity	worst concave points	worst symmetry	worst fractal dimension
306	13.200	15.82	84.07	537.3	0.08511	0.05251	0.001461	0.003261	0.1632	0.05894	...	14.41	20.45	92.00	636.9	0.11280	0.1346	0.01120	0.02500	0.2651	0.08385
410	11.360	17.57	72.49	399.8	0.08858	0.05313	0.027830	0.021000	0.1601	0.05913	...	13.05	36.32	85.07	521.3	0.14530	0.1622	0.18110	0.08698	0.2973	0.07745
197	18.080	21.84	117.40	1024.0	0.07371	0.08642	0.110300	0.057780	0.1770	0.05340	...	19.76	24.70	129.10	1228.0	0.08822	0.1963	0.25350	0.09181	0.2369	0.06558
376	10.570	20.22	70.15	338.3	0.09073	0.16600	0.228000	0.059410	0.2188	0.08450	...	10.85	22.82	76.51	351.9	0.11430	0.3619	0.60300	0.14650	0.2597	0.12000
244	19.400	23.50	129.10	1155.0	0.10270	0.15580	0.204900	0.088860	0.1978	0.06000	...	21.65	30.53	144.90	1417.0	0.14630	0.2968	0.34580	0.15640	0.2920	0.07614
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
8	13.000	21.82	87.50	519.8	0.12730	0.19320	0.185900	0.093530	0.2350	0.07389	...	15.49	30.73	106.20	739.3	0.17030	0.5401	0.53900	0.20600	0.4378	0.10720
73	13.800	15.79	90.43	584.1	0.10070	0.12800	0.077890	0.050690	0.1662	0.06566	...	16.57	20.86	110.30	812.4	0.14110	0.3542	0.27790	0.13830	0.2589	0.10300
400	17.910	21.02	124.40	994.0	0.12300	0.25760	0.318900	0.119800	0.2113	0.07115	...	20.80	27.78	149.60	1304.0	0.18730	0.5917	0.90340	0.19640	0.3245	0.11980
118	15.780	22.91	105.70	782.6	0.11550	0.17520	0.213300	0.094790	0.2096	0.07331	...	20.19	30.50	130.30	1272.0	0.18550	0.4925	0.73560	0.20340	0.3274	0.12520
206	9.876	17.27	62.92	295.4	0.10890	0.07232	0.017560	0.019520	0.1934	0.06285	...	10.42	23.22	67.08	331.6	0.14150	0.1247	0.06213	0.05588	0.2989	0.07380

455 rows × 30 columns

X_test

	mean radius	mean texture	mean perimeter	mean area	mean smoothness	mean compactness	mean concavity	mean concave points	mean symmetry	mean fractal dimension	...	worst radius	worst texture	worst perimeter	worst area	worst smoothness	worst compactness	worst concavity	worst concave points	worst symmetry	worst fractal dimension
28	15.30	25.27	102.40	732.4	0.10820	0.16970	0.16830	0.08751	0.1926	0.06540	...	20.27	36.71	149.30	1269.0	0.1641	0.61100	0.63350	0.20240	0.4027	0.09876
163	12.34	22.22	79.85	464.5	0.10120	0.10150	0.05370	0.02822	0.1551	0.06761	...	13.58	28.68	87.36	553.0	0.1452	0.23380	0.16880	0.08194	0.2268	0.09082
123	14.50	10.89	94.28	640.7	0.11010	0.10990	0.08842	0.05778	0.1856	0.06402	...	15.70	15.98	102.80	745.5	0.1313	0.17880	0.25600	0.12210	0.2889	0.08006
361	13.30	21.57	85.24	546.1	0.08582	0.06373	0.03344	0.02424	0.1815	0.05696	...	14.20	29.20	92.94	621.2	0.1140	0.16670	0.12120	0.05614	0.2637	0.06658
549	10.82	24.21	68.89	361.6	0.08192	0.06602	0.01548	0.00816	0.1976	0.06328	...	13.03	31.45	83.90	505.6	0.1204	0.16330	0.06194	0.03264	0.3059	0.07626
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
414	15.13	29.81	96.71	719.5	0.08320	0.04605	0.04686	0.02739	0.1852	0.05294	...	17.26	36.91	110.10	931.4	0.1148	0.09866	0.15470	0.06575	0.3233	0.06165
515	11.34	18.61	72.76	391.2	0.10490	0.08499	0.04302	0.02594	0.1927	0.06211	...	12.47	23.03	79.15	478.6	0.1483	0.15740	0.16240	0.08542	0.3060	0.06783
186	18.31	18.58	118.60	1041.0	0.08588	0.08468	0.08169	0.05814	0.1621	0.05425	...	21.31	26.36	139.20	1410.0	0.1234	0.24450	0.35380	0.15710	0.3206	0.06938
3	11.42	20.38	77.58	386.1	0.14250	0.28390	0.24140	0.10520	0.2597	0.09744	...	14.91	26.50	98.87	567.7	0.2098	0.86630	0.68690	0.25750	0.6638	0.17300
261	17.35	23.06	111.00	933.1	0.08662	0.06290	0.02891	0.02837	0.1564	0.05307	...	19.85	31.47	128.20	1218.0	0.1240	0.14860	0.12110	0.08235	0.2452	0.06515

114 rows × 30 columns

y_train

306    1.0
410    1.0
197    0.0
376    1.0
244    0.0
      ...
8      0.0
73     0.0
400    0.0
118    0.0
206    1.0
Name: target, Length: 455, dtype: float64

y_test

28     0.0
163    1.0
123    1.0
361    1.0
549    1.0
      ...
414    0.0
515    1.0
186    0.0
3      0.0
261    0.0
Name: target, Length: 114, dtype: float64

Feature scaling

from sklearn.preprocessing import StandardScaler
sc = StandardScaler()
X_train_sc = sc.fit_transform(X_train)
X_test_sc = sc.transform(X_test)

Machine Learning Model Building

from sklearn.metrics import confusion_matrix, classification_report, accuracy_score

Suppor vector Classifier

# Support vector classifier
from sklearn.svm import SVC
svc_classifier = SVC()
svc_classifier.fit(X_train, y_train)
y_pred_scv = svc_classifier.predict(X_test)
accuracy_score(y_test, y_pred_scv)

0.9385964912280702

Train with Standard scaled Data

# Train with Standard scaled Data
svc_classifier2 = SVC()
svc_classifier2.fit(X_train_sc, y_train)
y_pred_svc_sc = svc_classifier2.predict(X_test_sc)
accuracy_score(y_test, y_pred_svc_sc)

0.9649122807017544

Logistic Regression

# Logistic Regression
from sklearn.linear_model import LogisticRegression
lr_classifier = LogisticRegression(random_state = 51, C=1, penalty='l1', solver='liblinear')
lr_classifier.fit(X_train, y_train)
y_pred_lr = lr_classifier.predict(X_test)
accuracy_score(y_test, y_pred_lr)

0.9649122807017544

Train with Standard scaled Data

# Train with Standard scaled Data
lr_classifier2 = LogisticRegression(random_state = 51, C=1, penalty='l1', solver='liblinear')
lr_classifier2.fit(X_train_sc, y_train)
y_pred_lr_sc = lr_classifier.predict(X_test_sc)
accuracy_score(y_test, y_pred_lr_sc)

0.6052631578947368

Naive Bayes Classifier

# Naive Bayes Classifier
from sklearn.naive_bayes import GaussianNB
nb_classifier = GaussianNB()
nb_classifier.fit(X_train, y_train)
y_pred_nb = nb_classifier.predict(X_test)
accuracy_score(y_test, y_pred_nb)

0.9473684210526315

# Train with Standard scaled Data
nb_classifier2 = GaussianNB()
nb_classifier2.fit(X_train_sc, y_train)
y_pred_nb_sc = nb_classifier2.predict(X_test_sc)
accuracy_score(y_test, y_pred_nb_sc)

0.9385964912280702

K – Nearest Neighbor Classifier

# K – Nearest Neighbor Classifier
from sklearn.neighbors import KNeighborsClassifier
knn_classifier = KNeighborsClassifier(n_neighbors = 5, metric = 'minkowski', p = 2)
knn_classifier.fit(X_train, y_train)
y_pred_knn = knn_classifier.predict(X_test)
accuracy_score(y_test, y_pred_knn)

0.9385964912280702

# Train with Standard scaled Data
knn_classifier2 = KNeighborsClassifier(n_neighbors = 5, metric = 'minkowski', p = 2)
knn_classifier2.fit(X_train_sc, y_train)
y_pred_knn_sc = knn_classifier.predict(X_test_sc)
accuracy_score(y_test, y_pred_knn_sc)

0.5789473684210527

Decision Tree Classifier

# Decision Tree Classifier
from sklearn.tree import DecisionTreeClassifier
dt_classifier = DecisionTreeClassifier(criterion = 'entropy', random_state = 51)
dt_classifier.fit(X_train, y_train)
y_pred_dt = dt_classifier.predict(X_test)
accuracy_score(y_test, y_pred_dt)

0.9473684210526315

# Train with Standard scaled Data
dt_classifier2 = DecisionTreeClassifier(criterion = 'entropy', random_state = 51)
dt_classifier2.fit(X_train_sc, y_train)
y_pred_dt_sc = dt_classifier.predict(X_test_sc)
accuracy_score(y_test, y_pred_dt_sc)

0.7543859649122807

# Random Forest Classifier

# Random Forest Classifier
from sklearn.ensemble import RandomForestClassifier
rf_classifier = RandomForestClassifier(n_estimators = 20, criterion = 'entropy', random_state = 51)
rf_classifier.fit(X_train, y_train)
y_pred_rf = rf_classifier.predict(X_test)
accuracy_score(y_test, y_pred_rf)

0.9736842105263158

# Train with Standard scaled Data
rf_classifier2 = RandomForestClassifier(n_estimators = 20, criterion = 'entropy', random_state = 51)
rf_classifier2.fit(X_train_sc, y_train)
y_pred_rf_sc = rf_classifier.predict(X_test_sc)
accuracy_score(y_test, y_pred_rf_sc)

0.7543859649122807

AdaBoost Classifier

# Adaboost Classifier
from sklearn.ensemble import AdaBoostClassifier
adb_classifier = AdaBoostClassifier(DecisionTreeClassifier(criterion = 'entropy', random_state = 200),
                                    n_estimators=2000,
                                    learning_rate=0.1,
                                    algorithm='SAMME.R',
                                    random_state=1,)
adb_classifier.fit(X_train, y_train)
y_pred_adb = adb_classifier.predict(X_test)
accuracy_score(y_test, y_pred_adb)

0.9473684210526315

# Train with Standard scaled Data
adb_classifier2 = AdaBoostClassifier(DecisionTreeClassifier(criterion = 'entropy', random_state = 200),
                                    n_estimators=2000,
                                    learning_rate=0.1,
                                    algorithm='SAMME.R',
                                    random_state=1,)
adb_classifier2.fit(X_train_sc, y_train)
y_pred_adb_sc = adb_classifier2.predict(X_test_sc)
accuracy_score(y_test, y_pred_adb_sc)

0.9473684210526315
